The Generac Guardian series™ 5504 - 17kw essential circuit standby generator system has been discontinued and is not available for purchase at this time.

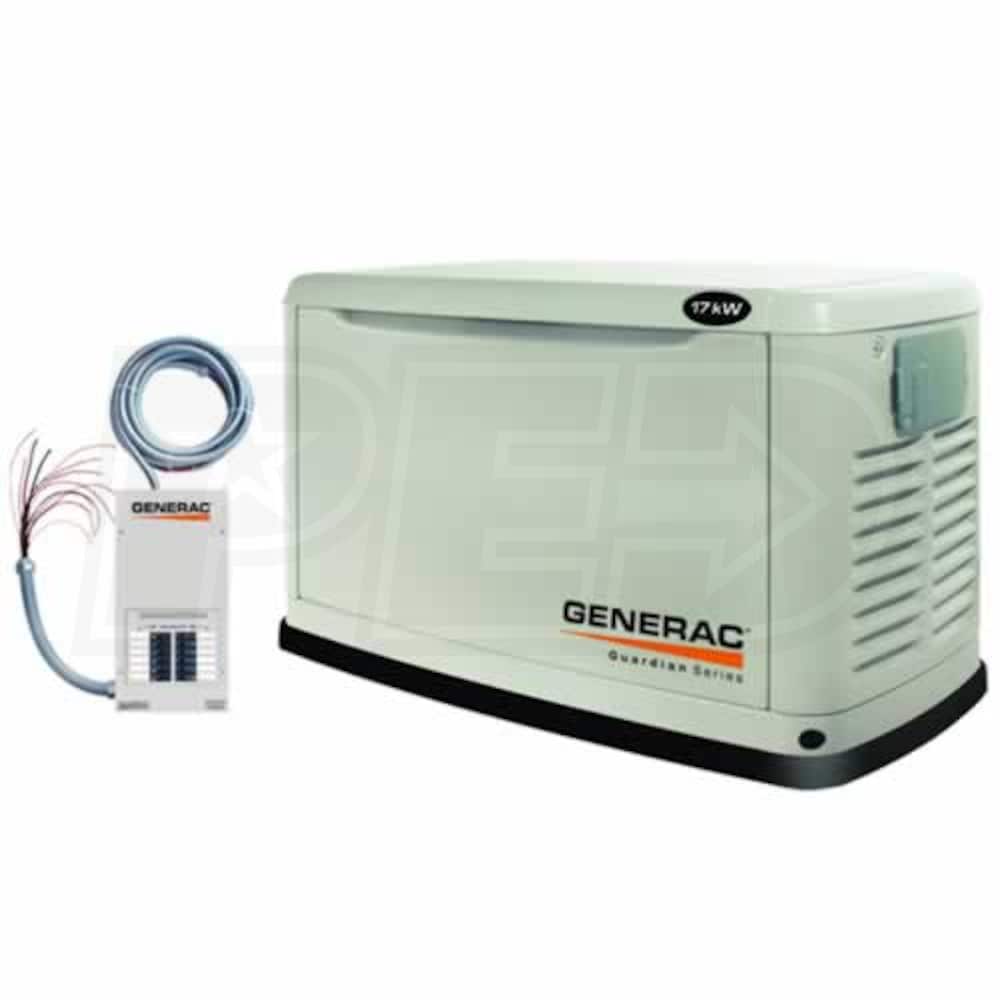

Generac Guardian Series™ 5504 - 17kW Essential Circuit Standby Generator System

Close
Generac Guardian Electric Generators and AccessoriesModel: 5504
(Based on expert analysis, manufacturer ratings and customer reviews)
4.5 out of 54.5 out of 54.5 out of 54.5 out of 54.5 out of 5
2 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
  • Features
  • Specs
  • Q&A
  • 2
    Reviews
  • Articles
  • Accessories
Grade
Airooled Standby Generators
Style
Watts
17 kW
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
100-Amp Indoor Automatic Transfer Switch w/ 16 Circuits included
Pre-wired External Connection Box
30' Pre-Wired Conduit From Transfer Switch To Generator
2' Pre-Wired Conduit From Transfer Switch To Main Panel
Composite Mounting Pad

Emergency Standby Power Generator
Designed for homes
Runs off natural gas or LP fuel source

Whisper-Test™ low speed exercise mode
Reduces sound level from 66 to 60 d(B)A during weekly exercise

Generac OHVI V-TWIN Air-Cooled Engine
Maximizes engine “breathing” for increased fuel efficiency

Two Line LCD Digital Controller
Allows for simple user interface for ease of operation

Automatic Exerciser
Allows generator to run a self-test every 7 days

Weather Protected Steel Enclosure
Shelters generator from weather and reduces exterior noise

Built-in Battery Charger
Battery Sold Separately
Engine
Engine Brand
Generac
HP
32 HP
CC
992 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
17000 Watts
Rated Watts
17000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
17000 Watts
NG Fuel Consumption @ 50% Load
183 (BTU: 183,000 BTU/HR) ft³/hr
LP Fuel Consumption @ 50% Load
1.61 (BTU: 146,108 BTU/HR) gallons/hr
Rated Amps
71 @ 240 Volts (Single Phase) Amps
Decibel Rating @ 7m
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Enclosure
Steel
Max Circuits
16
Battery
Not Included (525 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (16-Circuit)
ATS Poles
2 Poles
Cooling System
Air Cooled
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
5
20A 240V
1
40A 240V
1
50A 240V
1
Overview
Made in USA
Yes
Weight
535 Pounds
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Model
5504
