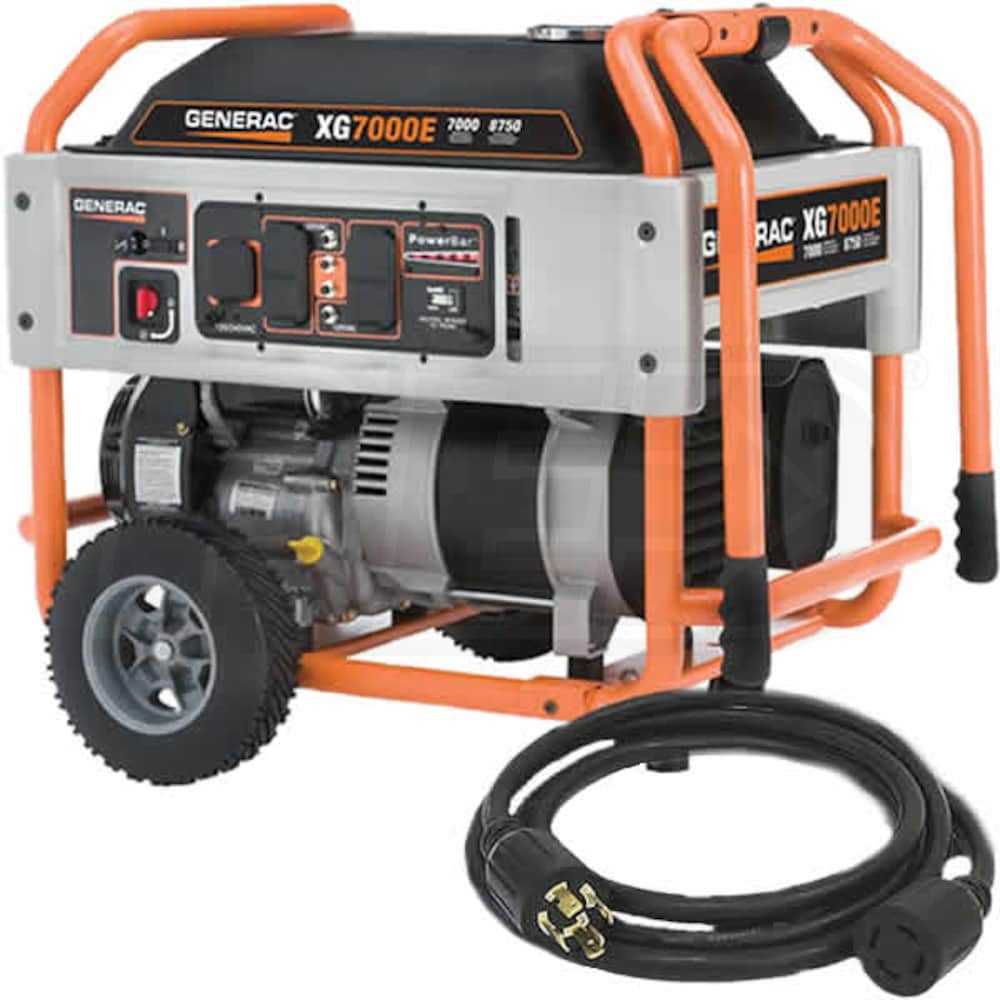

Generac XG7000E 7000 Watt Electric Start Portable Generator with 30 Amp Generator Cord

Model:

EGD-5798CORDKIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac XG7000E 7000 Watt Electric Start Portable Generator with 30 Amp Generator Cord
Generac XG7000E 7000 Watt Electric Start Portable Generator with 30 Amp Generator Cord
Model: EGD-5798CORDKIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Portable

Run Watts

7,000 Rated Watts

Surge Watts

8,750
Starting Watts

Fuel

Gasoline

Engine

Generac OHVI



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • *Bonus* 30-Amp (4-Prong 40-Foot) Generator Power Cord
  • Connect a generator and transfer switch with a single cord
  • Generac OHVI Engine
  • Provides smooth power delivery with OHV "I" (industrial) design
  • Engineered for performance w/full pressure engine lubrication
  • Oversized Full-Wrap Frame Tubing & Impact Resistant Corners
  • Durable construction which minimizes damage from rough handling
  • Illuminated Control Panel
  • Brightens up controls for better visibility
  • Power Bar
  • Keeps an eye on your wattage output for improved performance
  • Covered Outlets
  • Protects your connection from the environment
  • Start/Stop Fuel Shut-Off & Choke Controls
  • Easy to reach on the control panel for better control
  • Low-Oil Shut Down & Hour Meter
  • Protects engine from damage & tracks usage for maintenance
  • External Battery Charge Jack (Includes Charger)
  • Plug in your generator when not in use to keep battery charged
  • 2-Year Residential Warranty/ 1-Year Commercial Warranty
  • Product Includes
    • (1) Generac XG7000E - 7000 Watt Electric Start Portable Generator (5798)
    • (1) Gen-Tran 30-Amp (4-Prong 40-Foot) Generator Power Cord (RJB10440)

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
Product Includes
  • (1) Generac XG7000E - 7000 Watt Electric Start Portable Generator (5798)
  • (1) Gen-Tran 30-Amp (4-Prong 40-Foot) Generator Power Cord (RJB10440)
EGD-5798CORDKIT
specs product image PID-69188
Overview
Assembly Required
Yes
Weight
245 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
25.5 Inches
Product Height
28 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7000 Watts
Surge Watts
8750 Watts
Fuel Type
Gasoline
Rated Amps
29 Amps
Portability Kit
Never Flat Wheels
Tank Size
9 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start w/ Recoil
CC
410 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Overview
Assembly Required
Yes
Weight
245 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
25.5 Inches
Product Height
28 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7000 Watts
Surge Watts
8750 Watts
Fuel Type
Gasoline
Rated Amps
29 Amps
Portability Kit
Never Flat Wheels
Tank Size
9 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start w/ Recoil
CC
410 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
RJB10440
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-30R
1
Cord
Cord Length
40 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
