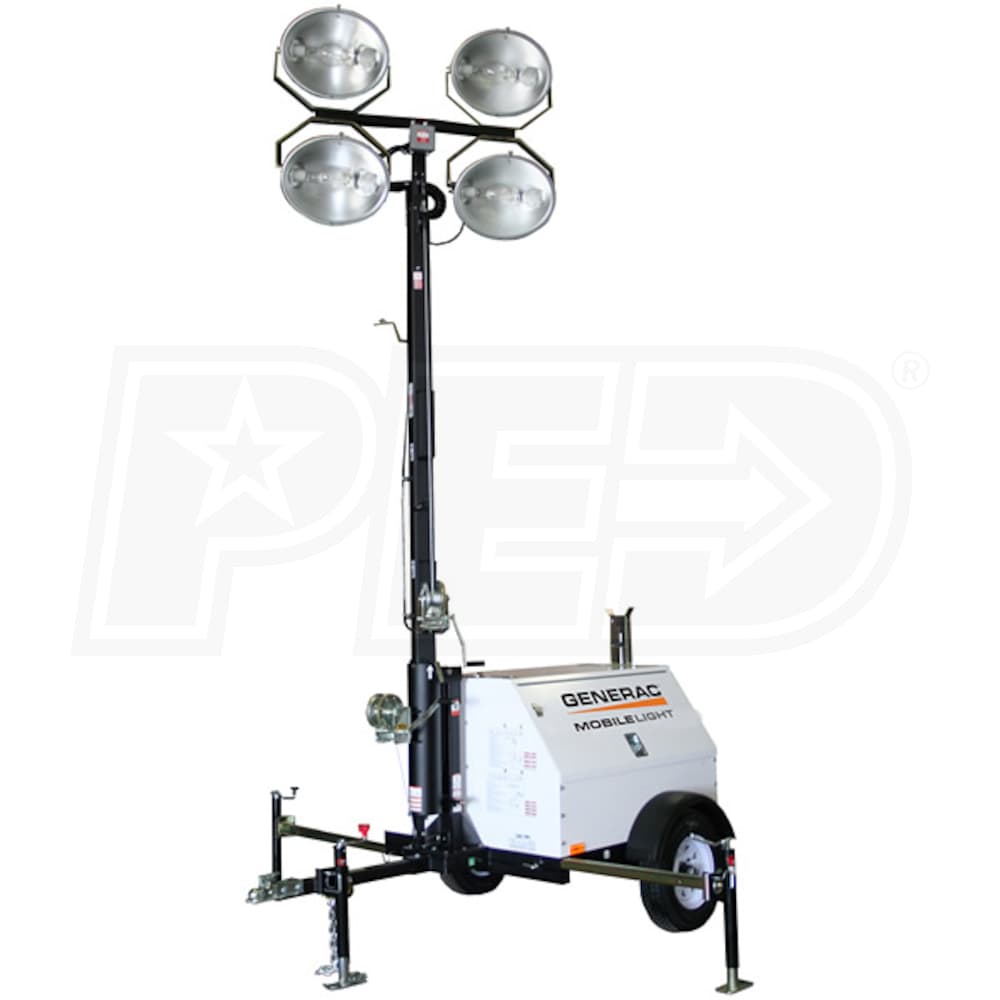

Generac MLT4080 - 8kW Towable Diesel Light Tower w/ Kubota Engine

Model:

6796

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac MLT4080 -  8kW Towable Diesel Light Tower w/ Kubota Engine
Generac MLT4080 - 8kW Towable Diesel Light Tower w/ Kubota Engine
Model: 6796
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Tow-Behind

Run Watts

8,000 Rated Watts

Surge Watts

8,000
Starting Watts

Fuel

Diesel

Engine

Kubota

  • Industrial Towable Diesel Generator w/ Light Tower
  • Designed & engineered for optimum performance & reliability
  • 1.12L Liquid-Cooled Kubota Diesel Engine
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Large 30-Gallon Polyethylene Internal Fuel Tank
  • Provides up to 43 hours of run time @ full load
  • Marathon Electric Brushless Alternator
  • Long life & low maintenance while providing +/- 6% voltage reg.
  • 4 x 1000-Watt Metal Halide Lamps
  • Provides light coverage for over 5-7 acres
  • 30' 3-Section Tubular Steel Light Mast
  • Provides easy setup & rotates 360 for optimum lighting
  • Dual-Winch System
  • Located at an ergonomic height for single-person operation
  • Single Axle Trailer w/ Front Leveling Jack
  • Combined with a high quality suspension & safety lights
  • Additional Features
  • Includes Engine Starting Battery
  • Padlockable side door & Circuit Breaker protected receptacles
  • CUSTOMER MUST UNLOAD FROM FREIGHT CARRIER

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
6796
specs product image PID-14676
Overview
Weight
2200 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Light Tower
Product Length
170 Inches
Product Width
68 Inches
Product Height
70 Inches
UPC
696471067965
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
33 Amps
Diesel Fuel Consumption @ 50% Load
0.5 gallons/hr
Portability Kit
Pneumatic Wheels
Tank Size
30 Gallons
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68 dbA
Idle Control
Yes
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Key Start
CC
1120 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
