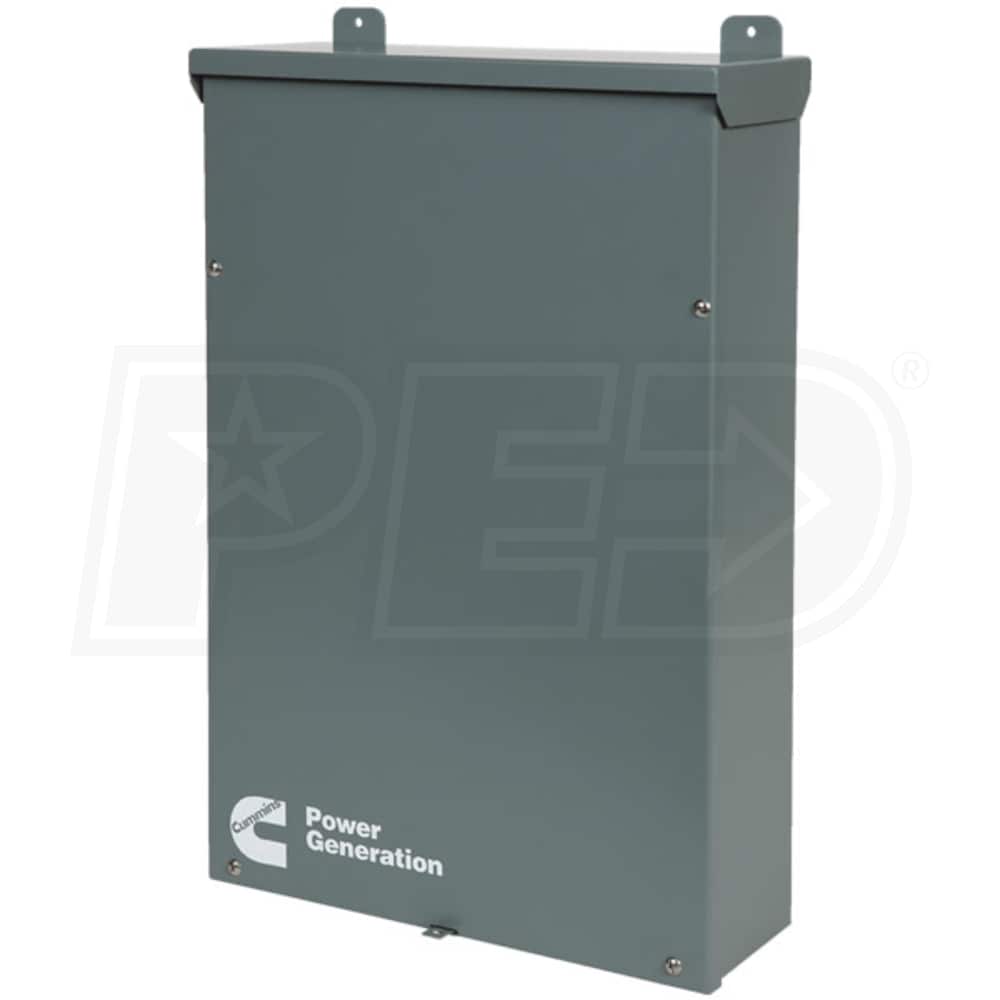

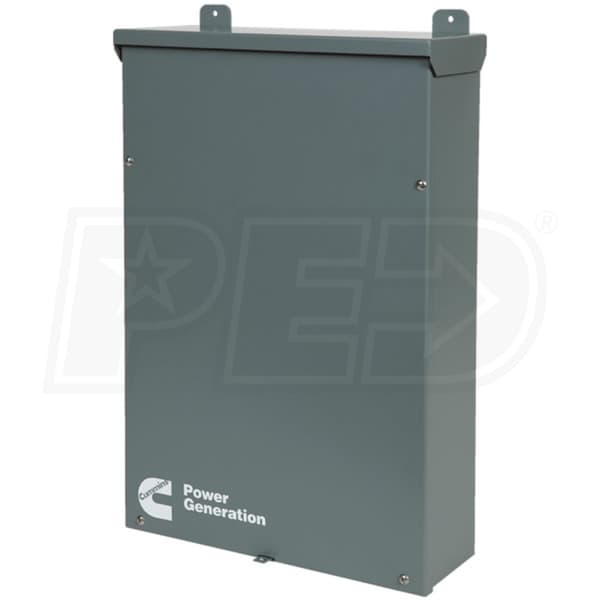

Cummins RA-200-NSE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Steel)

Model:

A045P694

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Cummins RA-200-NSE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Steel)
Cummins RA-200-NSE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Steel)
Model: A045P694
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

200

Load Mgmt.

Not Required

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Cummins RA Series 200-Amp Automatic Transfer Switch
  • Specifically designed for Cummins RS & RX series generators
  • Versatile Design
  • For standby systems in residential & light commercial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utility power
  • NEMA 3R (Indoor/Outdoor) Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interlocked Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 200-Amps @ 240-Volts
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A045P694
specs product image PID-13285
Overview
Weight
46 Pounds
Consumer Warranty
1 Year
Product Length
27.1 Inches
Product Width
18.2 Inches
Product Height
7.4 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
