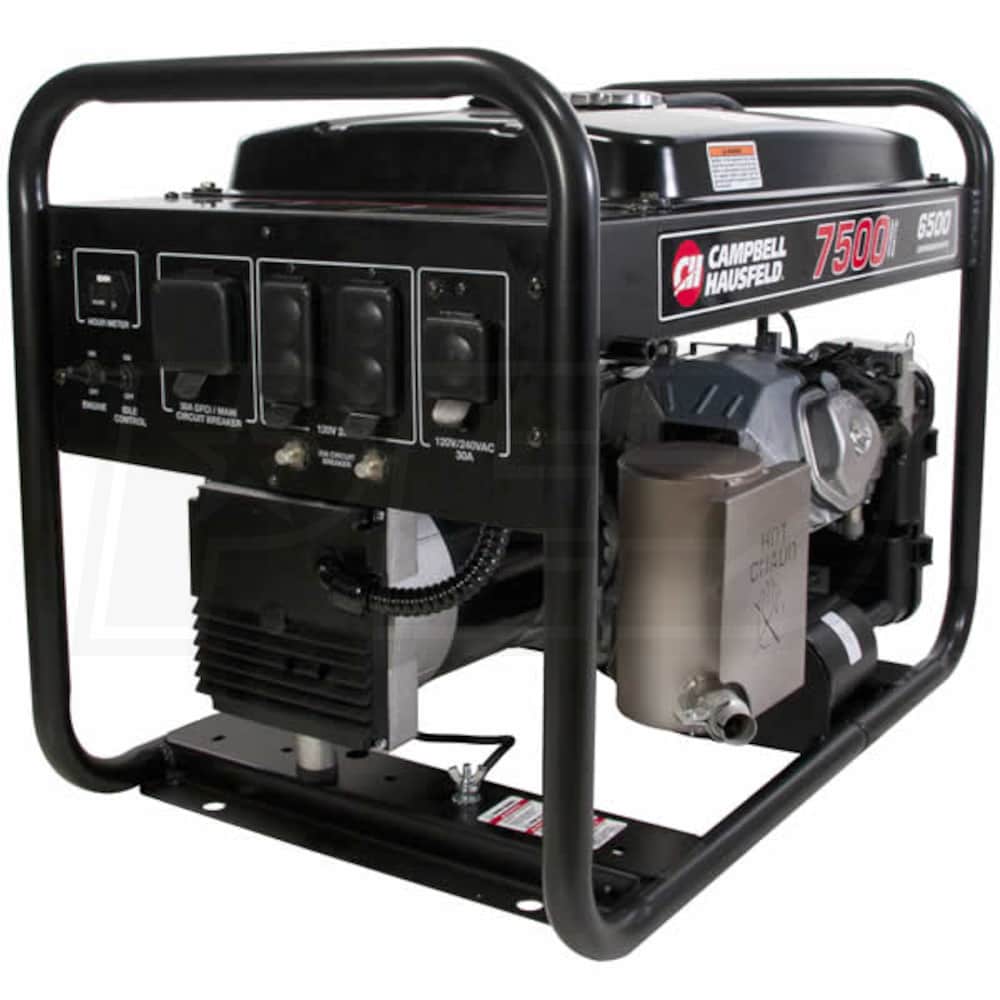

Campbell Hausfeld GN6575 - 6500 Watt Electric Start Professional Generator w/ Honda GX Engine

Model:

GN6575

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Campbell Hausfeld GN6575 - 6500 Watt Electric Start Professional Generator w/ Honda GX Engine
Campbell Hausfeld GN6575 - 6500 Watt Electric Start Professional Generator w/ Honda GX Engine
Model: GN6575
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

6,500 Rated Watts

Surge Watts

7,500
Starting Watts

Fuel

Gasoline

Engine

Honda GX

  • Powered By Honda's GX390 Commercial Grade OHV Engine
  • Reliable, Easy-to-Start and Incredibly Rugged
  • Electric Start w/ Recoil Backup
  • Provides easy starting on the job site
  • Oil Alert® Warning System
  • Shuts the engine down if oil reaches an unsafe operating level
  • Brushless Alternator
  • Provides clean power for sensitive equipment
  • Idle Control
  • Reduces noise and saves fuel on the job site
  • OSHA Compliant Control Panel w/ GFCI
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kits
  • 5 Gallon Metal Fuel Tank w/ Fuel Gauge
  • Runs up to 11 hours @ 1/2 load
  • Thermal Circuit Breakers
  • Provides added safety & superior overload protection
  • Steel Welded Frame
  • Provides protection on the job site & designed for easy mounting
  • 3-Year Limited Warranty

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
GN6575
specs product image PID-9296
Overview
Assembly Required
No
Weight
176 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
32 Inches
Product Width
21 Inches
Product Height
24 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
6500 Watts
Surge Watts
7500 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Sold Separately
Tank Size
5 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
CC
390 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
